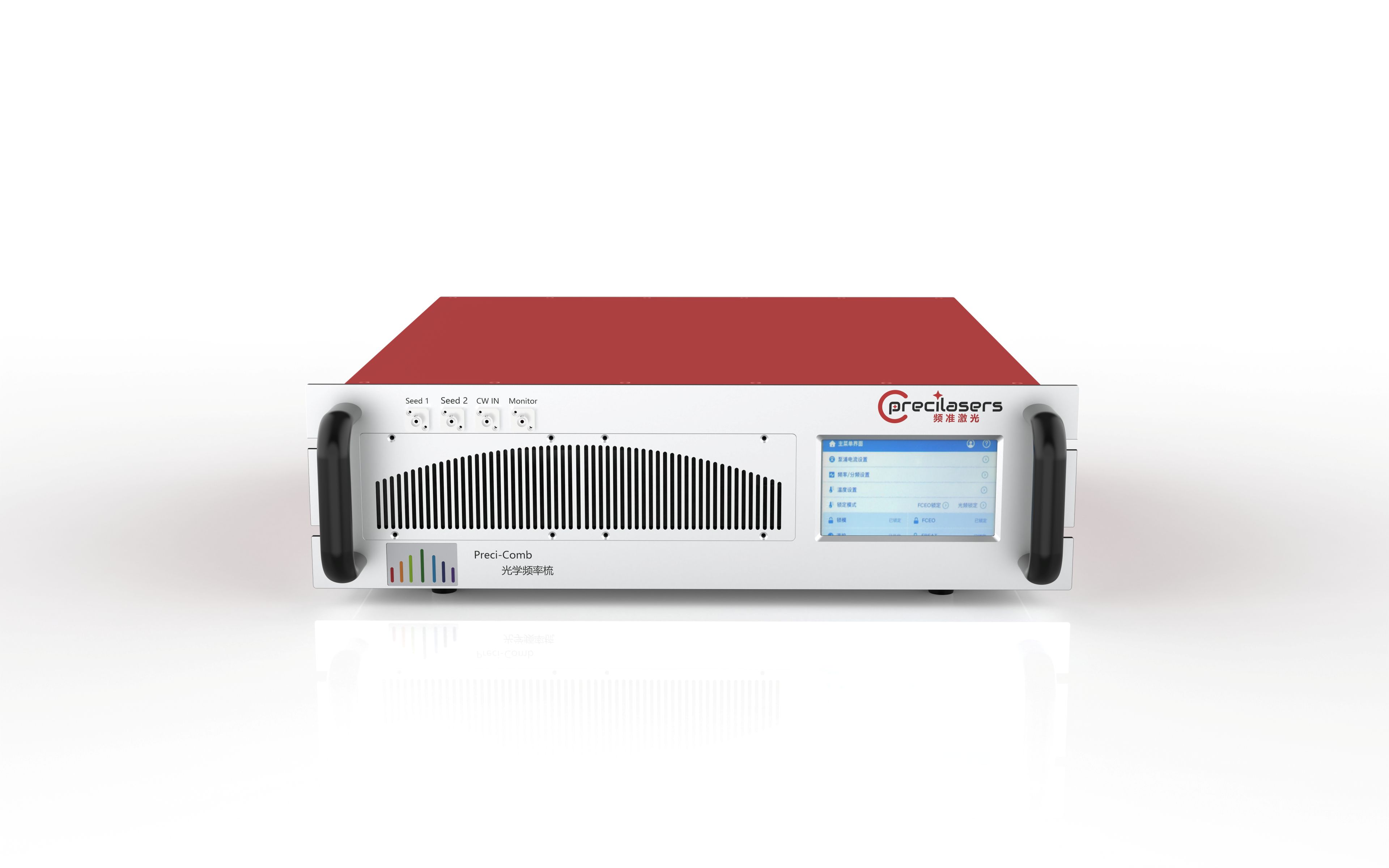

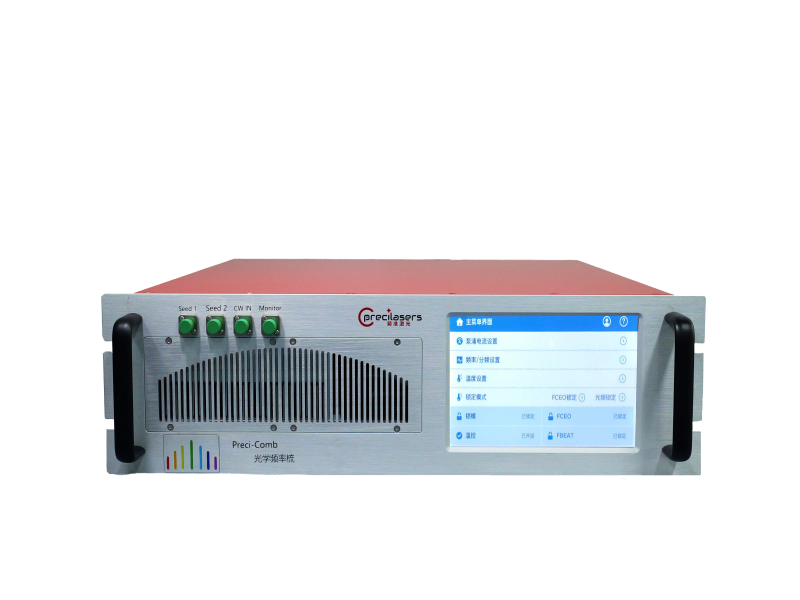

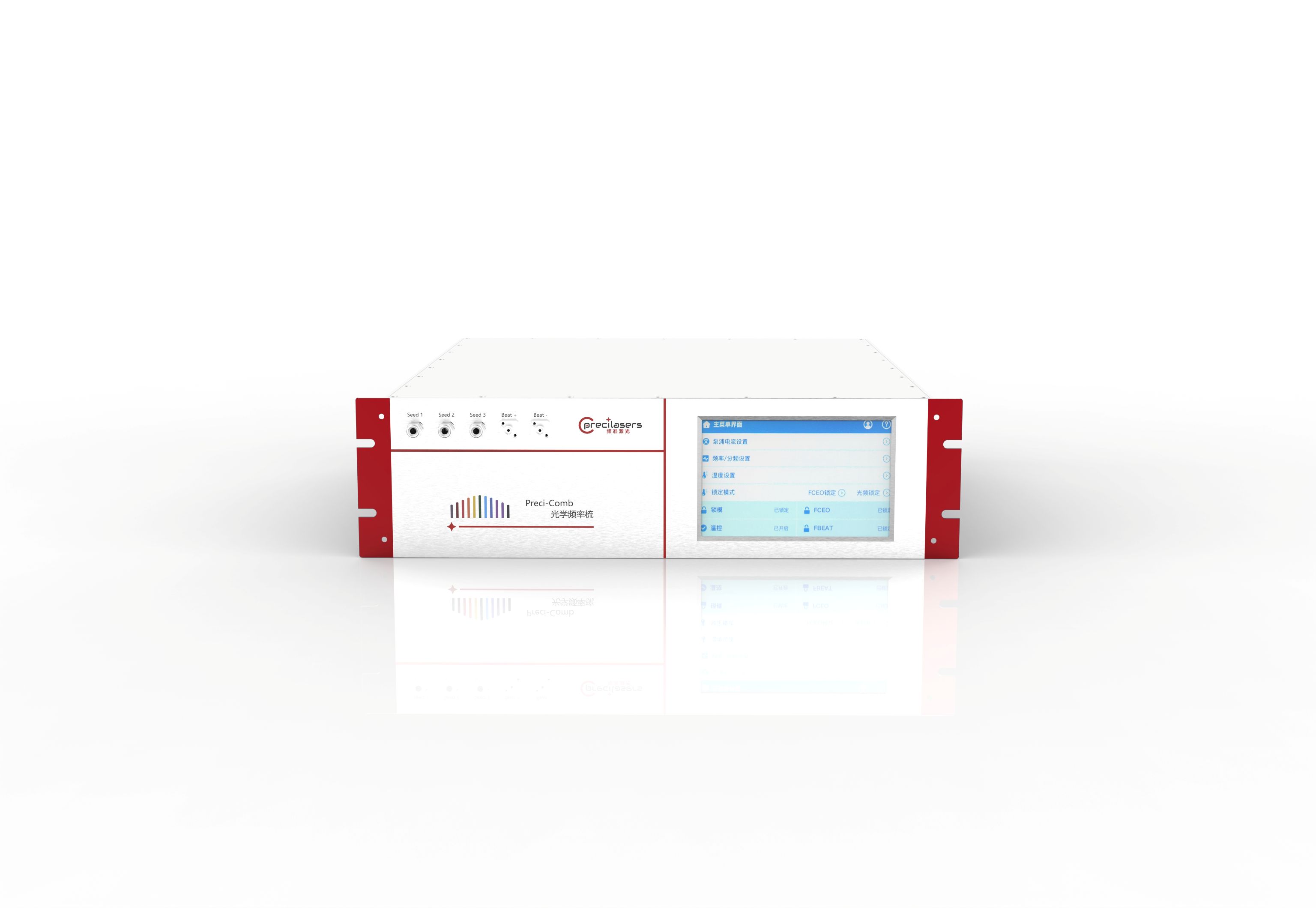

High-Performance Optical Frequency Comb
Precilasers’compact optical frequency comb achieves high precision, high stability,one-button fully automated optical frequency comb in the volume of a 3U standard 19”cabinet.Based on highly customized optional optical modules,it supports up to 2W optical power output,can achieve any optical frequency measurement and optical reference between 500nm-2200nm,and can be widely used in optical precision measurement,cold atomic optical clock,time frequency transfer,quantum precision measurement and other fields.
Features
- High Stability
- Wide Wavelength Range
- Small Size
- Photoelectric Integrated
Application
- Optical Precision Measurement
- Cold Atomic Optical Clock
- Time Frequency Transfer
- Quantum Precision Measurement
Main parameters
|
Specification |
|
|
Common Wavelengths |
1560±20nm |
|
Output Power |
Multi-channel output, total power ≥ 50mW |
|
Optical Frequency Range |
＞30nm，（Optional: 1000nm-2200nm，500nm-2200nm） |
|
Optional Repetition Rate Range |
50-250MHz |
|
Frequency Stability |
In-loop Control Stability: <5E-18@1s，<2E-20@100s Out-of-loop Stability: <2e-17@1s（1），<2e-18@1000s（1）<5e-13@1s（2） |
|
Output Mode |
Single-mode Polarization-Maintaining Fiber Output， FC/APC |
|
Integrated Phase Noise |
＜100mrad[100Hz-2MHz] |
|
Repetition Rate Tuning Range |
>1 MHz@ 250MHz repetition rate >500kHz@ 100MHz repetition rate |
|
Repetition Rate Control Bandwidth (Open Loop) |
> 1MHz |
|
Carrier-Envelope Offset (CEO) Frequency SNR |
> 40 dB at 100 kHz RBW |
|
CEO Frequency Tuning Range |
>250 MHz |
|
CEO Frequency Control Bandwidth (Open Loop) |
> 1MHz |
|
Pulse Width |
＜80fs |
|
Reference Source |
10 MHz reference frequency, power level +7 dBm, or built-in atomic clock |
|
Other Parameters |
|
|
Chassis Dimensions |
441mm*439mm*132cm |
|
Weight |
<40kg |
|
Power Supply |
100-240V, AC, 50/60Hz |
|
Power Consumption |
<300W |
|
Cooling Method |
Air Cooling |
|
Options |
|
|
Spectral Expansion Module |
Option A: Single-point output at any wavelength in 500nm-2100nm, power > 0.5mW, spectral width 2-3nm; Option B: Continuous spectrum output in 1000-2100nm, power > 50mW; Option C: Continuous spectrum output in 500-2100nm, power > 100mW; |
|
Power Amplification Module |
Wavelength: 1.5μm, output power > 5W |
(1) Phase-locked to optical frequency reference, using comb-comb out-of-loop comparison
(2) Phase-locked to RF reference (limited by the counter)
