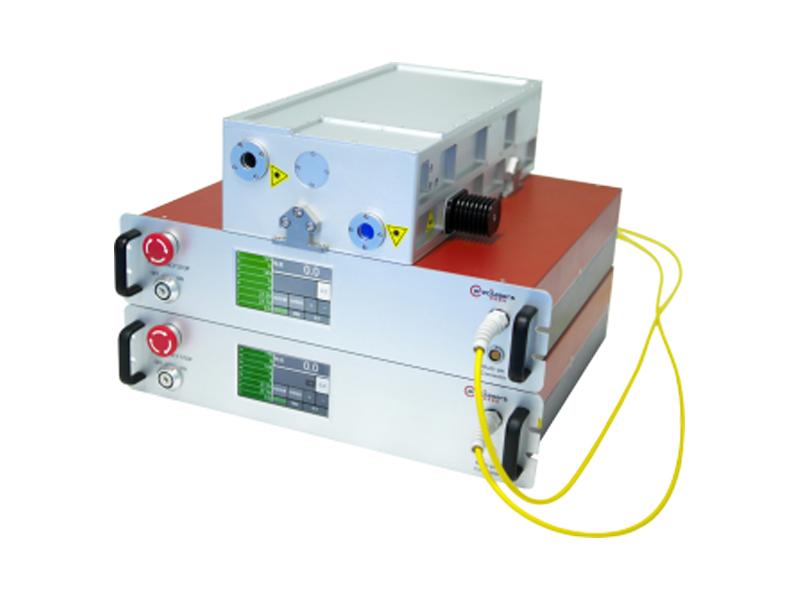

300-305nm Laser
Based on high-power, low-noise fiber amplification, as well as sum frequency and frequency doubling technologies, it enables high-power, narrow-linewidth laser output at any central wavelength within the range of 300-305 nm.
Features
- Narrow Linewidth: <40 kH
- Low Intensity Noise
- High Power
- Active Power Stability: <0.75% rms, 3 hrs
- Excellent Beam Quality (M² <1.3)
- Mode Hopping Free
- Resistant to high/low temperatures and vibration in operating environment
Application
- Interference Exposure
- Wafer Metrology
- Precision Measurement
Main parameters
|
Specification |
||||||
|
Partnumber |
FL-SF-XX-YY（1）-CW |
|||||
|
Typical Wavelength |
302nm |
|||||
|
Output Power |
0.1W |
0.5W |
1W |
2W |
4W(coming soon) |
|
|
Linewidth (2) (100 us integration) |
＜60kHz |
|||||
|
Monitor optical output power @604nm |
>5mW |
|||||
|
Tuning range (Never mode-hop) |
>300GHz |
|||||
|
PZT Tuning Range |
>6GHz |
|||||
|
PZT Tuning Bandwidth |
>5kHz |
|||||
|
Current Tuning Range |
>1GHz |
|||||
|
Current Tuning Bandwidth |
>1MHz |
|||||
|
Power Stability（3 Hours RMS） |
＜1% |
|||||
|
Output Mode |
Spatial collimation output, diameter 0.8mm-1.2mm |
|||||
|
Polarization Extinction Ratio |
＞20dB，Linear, Vertical |
|||||
|
Beam Quality |
TEM00，M²＜1.3 |
|||||
|
Cooling |
Air cooling |
Water cooling |
||||
(1) WW: laser wavelength, XX: laser power, unit: W. For example, a 302nm laser with an output power of 1W: FL-SF-302-1-CW,
(2) Measurement of fiber delay by self-heterodyne beat frequency method
|
Options |
|
|
Wide Tuning Option |
By replacing the wide-tuning seed laser, ±0.5nm@302nm wide tuning is achieved |
|
Other Parameters |
||
|
Cooling |
Air cooling |
Water cooling |
|
Temperature |
15-30℃ |
|
|
Power Supply |
100V-220V, AC, 50Hz |
|
Higher power, more wavelengths, customizable solutions
