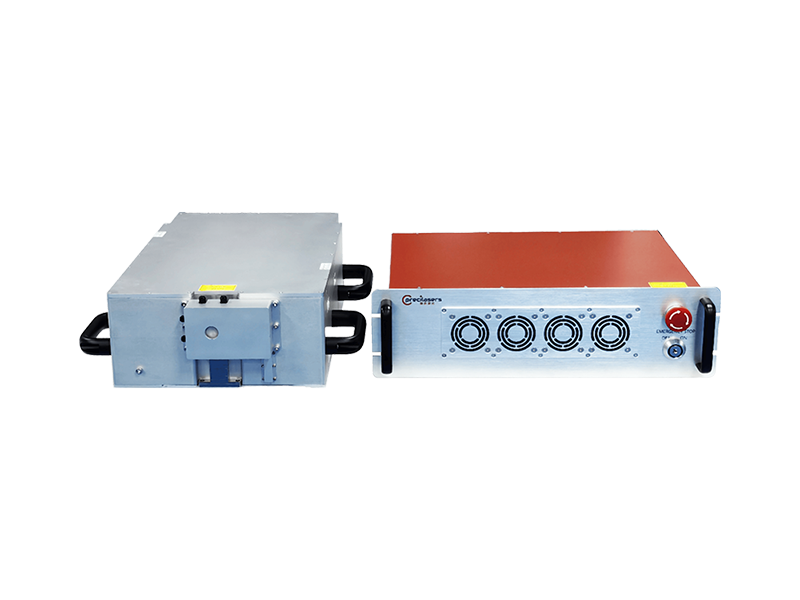

249-283.5nm Laser
Based on high-power, low-noise Yb-doped fiber lasers amplification and frequency quadrupling technology, Precilasers can provide high-power, narrow linewidth laser output with a wavelength ranging from 249 to 283.5 nm.
Features
- Narrow Linewidth
- Low RIN
- High Power
- Power Stability：<1%rms, 3hrs
- Excellent Beam Quality (M² <1.3)
- Never Mode-hop
- High Temperature And Vibration Resistance
Application
- Helium Atom Single Photon Rydberg
- Parametric Conversion
Main parameters
|
Specification |
|||
|
Partnumber |
FL-SF-XXXX-YY-CW(1) |
||
|
Wavelength Range |
249-283.5nm |
||
|
Typical Wavelength |
257nm、266nm |
||
|
Operation Mode |
CW |
||
|
Output Power |
＞0.1W |
＞0.5W |
＞1W |
|
Thermal Tuning Range |
＞0.17nm，Never Mode-hop |
||
|
Output Mode |
Free Space Output |
||
|
Beam Diameter |
0.8-1.2mm |
||
|
Linewidth（2）（100us） |
＜40kHz |
||
|
PER |
＞20dB |
||
|
Power Stability |
＜1%@3hours, RMS |
||
|
Beam Quality |
M2＜1.3 |
||
|
Fast Frequency Tuning Range |
＞3GHz |
||
|
Fast Frequency Tuning Bandwidth |
＞5kHz |
||
|
AOM Tuning Range （Optional） |
＞±5MHz |
||
|
AOM Tuning Bandwidth（Optional） |
＞500kHz |
||
|
RIN |
＜0.08%（10Hz-100MHz，RMS） |
||
|
Cooling |
Air Cooling/Water Cooling |
||
|
Operation Environment & Power Supply |
|
|
Temperature |
15-30 ℃（Air Cooling） or 15-35 ℃（Water Cooling） |
|
Power Supply |
100V-240V, AC, 50/60Hz |
|
Communication |
RS422 |
(1)XXXX is the laser center wavelength，YY is the laser power，for a 1W 257nm laser,the partnumberis FL-SF-257-1-CW
(2)Measured by self-hetrodyne method
Higher power, more wavelengths, customizable solutions
