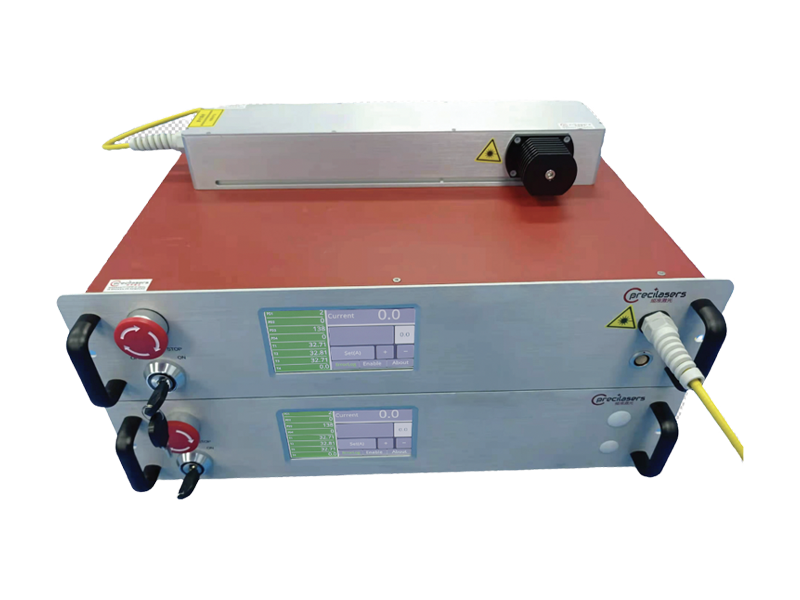

640-660nm Laser
Based on narrow linewidth seed lasers and low noise fiber amplifiers, Precilasers can provide high performance 640-660nm laser output.
Features
- Long life
- High Power
- Narrow Linewidth
- Excellent Beam Quality
- Never Mode-hop
Application
- Precision Measurement
- Interference Exposure
Main parameters
|
Specification |
|||||
|
Partnumber |
FL-SF-X-Y-CW(1) |
||||
|
Wavelength Range |
640-660nm |
||||
|
Typical Wavelength |
649nm, 656nm |
||||
|
Linewidth (2) (100 us integration) |
<20kHz |
||||
|
Operation Mode |
CW |
||||
|
Output Power |
>100mW |
>2W |
>5W |
||
|
Output Mode |
Collimated output |
||||
|
PZT Tuning Bandwidth |
>5kHz |
||||
|
PZT Tuning Range |
>3GHz |
||||
|
Current Fast Tuning Bandwidth |
>1MHz |
||||
|
Current Fast Tuning Range |
>500MHz |
||||
|
Beam Waist Diameter |
0.8±0.2 mm |
||||
|
Beam Quality |
TEM00，M²<1.1 |
||||
|
Polarization |
Linear, Vertical >23dB |
||||
|
Power Stability |
<0.75% @3hours, RMS |
||||
|
Cooling |
Air Cooling |
Water cooling |
|||
|
Cable Length between Controller and Head |
>1.5m |
||||
|
Operating Environment & Power Supply |
|||||
|
Temperature |
15-30 ℃ |
15-35 ℃ |
|||
|
Power Supply |
100V-240V, AC, 50/60Hz |
||||
|
Communication |
RS422 |
||||
(1) X: wavelength, in nm; Y: power, in W. For example, a 5W 656nm laser has a model number of FL-SF-656-5-CW.
Higher power, more wavelengths, customizable solutions
