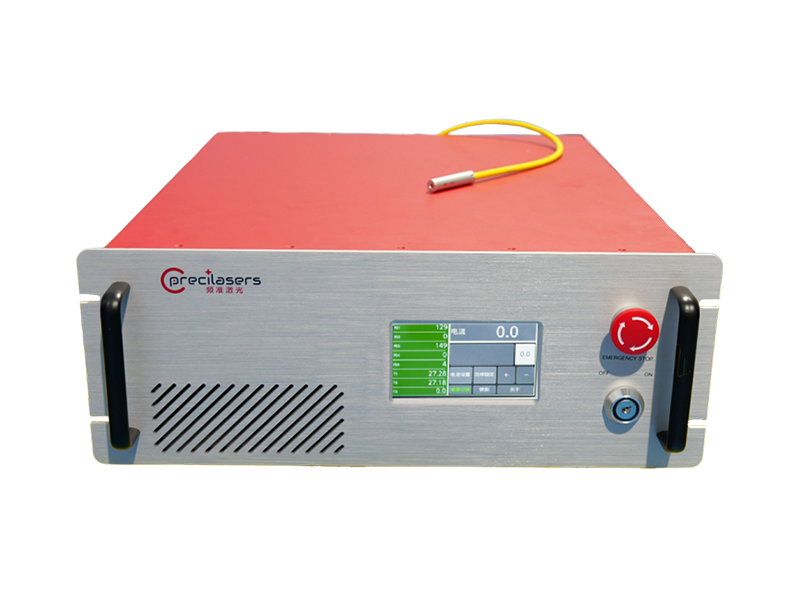

Er fiber amplifier
Based on Erbium-doped fiber amplifier technique, Precilasers can provide amplifier that cover 1525-1625nm range, to maxium power of 40W， and keeping very low phase noise and intensity noise.
Features
- Narrow Linewidth
- Excellent Beam Quality
- Seed Power-off Protection System
- Low Noise
Application
- Optical Communication
- Light Detection and Ranging
- Frequency-Doubled Fundamental Frequency Light Source
- Interferometry
- Mid-Infrared Parametric Oscillation Pumping
Main parameters
|
Specification |
|||||
|
Partnumber |
FA-SF-X-Y-CW(1) |
||||
|
Wavelength range |
1525-1530nm |
1530-1535nm |
1535-1570nm |
1570-1596nm |
1596-1625nm |
|
Output Power |
＞1w |
>2W/10W/15W |
>2W/10W/20W/40W |
>2W/10W |
>2W/5W |
|
Typical Wavelength |
1550.12nm, 1560.48nm |
||||
|
Bandwidth |
>±3nm |
>±5nm |
>±10nm |
>±10nm |
>±5nm |
|
Relative Intensity Noise |
<0.05% (RMS, 10Hz-10MHz Integration), Output Power<20W@1550-1560nm <0.5% (RMS, 10Hz-10MHz Integration), Output Power 20-30W@1550-1560nm <1% (RMS, 10Hz-10MHz Integration) Output Power>30W@1550-1560nm |
||||
|
Power Stability |
<0.75% @3hours, RMS |
||||
|
Power Tuning Range |
1-100% |
||||
|
Output Mode（2） |
Single Mode PM fiber，FC/APC Connector（Output Power≤2W) OR Collimated Output（All Power） |
||||
|
Beam Diameter |
0.6±0.2mm |
||||
|
Beam Quality |
TEM00，M²<1.1 |
||||
|
Polarization |
Linear, >23dB |
||||
|
Seed Laser Input Power |
≥10mW(3) |
||||
|
Seed Laser Input Isolation |
>25dB |
||||
|
Output Laser Isolation |
>25dB |
||||
|
Cooling |
Air Cooling /Water Cooling |
||||
|
Operating Environment & Power Supply |
|||||
|
Temperature |
15-30 ℃（Air Cooling） OR 15-35 ℃（Water Cooling） |
||||
|
Power Supply |
100V-240V, AC, 50/60Hz |
||||
|
Communication |
RS422 |
||||
Higher power, more wavelengths, customizable solutions
