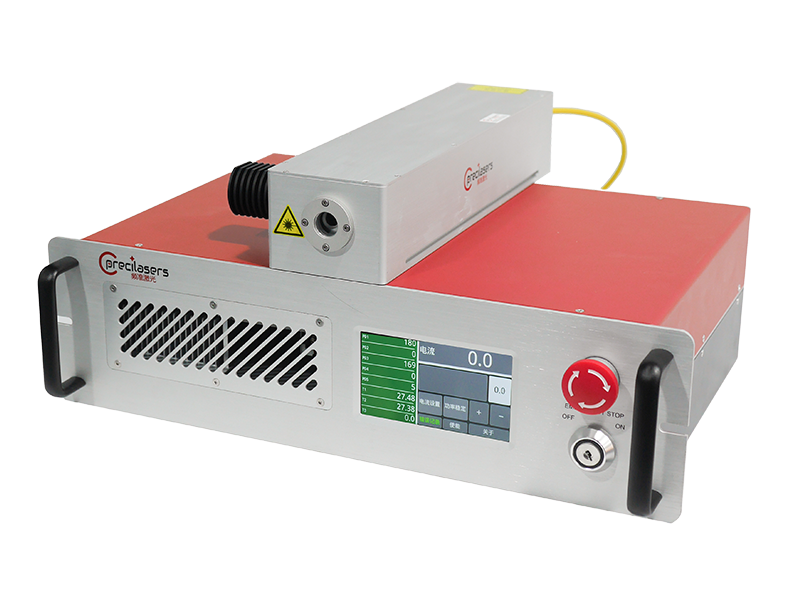

Narrow linewidth low-power green laser
Based on single frequency seed laser, fiber laser amplification and high efficiency frequency conversion technology, Precilasers can provide narrow linewidth 532nm laser with high frequency stability, long lifetime and excellent beam quality.
Features
- Long life
- High Power
- Narrow Linewidth
- Excellent Beam Quality
- Never Mode-hop
Application
- Precision Measurement
- Interference Exposure
Main parameters
|
Specification |
|||
|
Partnumber |
FL-SF-X-Y(1)-CW |
||
|
Central Wavelength Range |
532.00nm |
||
|
Common Wavelengths |
532nm |
||
|
Linewidth (2) (100 us integration) |
<50kHz |
||
|
Operation Mode |
Continuous |
||
|
Output Power |
＞5W |
＞10W |
|
|
Beam Waist Diameter |
0.6±0.2 mm |
||
|
Beam Waist Location Relative to Output Window (m) |
Output window within ±0.3m |
||
|
Beam Divergence (Full Angle) |
<0.8mrad |
||
|
Beam Ellipticity |
>90% |
||
|
Pointing Stability (µrad) |
<10μrad |
||
|
Beam Quality |
TEM00，M²<1.1 |
||
|
Polarization |
Linear, Vertical±3°, >20dB |
||
|
Power Stability |
<0.75% @3hours, RMS |
||
|
Relative Intensity Noise |
<0.06%(RMS, 10Hz-10MHz integration) |
||
|
Spectral Purity |
>99.9% |
||
|
Cooling |
Air Cooling/Water cooling |
||
|
Warm-up Time |
|||
|
Cold Start |
<2 Houes |
||
|
From Standby |
<30 minutes |
||
|
Dimensions & Weights |
|||
|
Laser Head Dimensions |
364.5mm x 90mm x 70mm |
||
|
Laser Controller Dimensions |
483mm x 420mm x 133mm(Air Cooling） 483mm x 422mm x 105mm(Water Cooling） |
||
|
Chiller Dimensions |
≤580mm x 290mm x 520mm |
||
|
Cable Length between Controller and Head |
>1.5m |
||
|
Operating Environment & Power Supply |
|||
|
Temperature |
15-30 ℃ |
15-35 ℃ |
|
|
Power Supply |
100V-240V, AC, 50/60Hz |
||
|
Communication |
RS422 |
||
(1) X is the laser output wavelength in nm, Y is the laser output power in W. For example, a 10W 532nm laser is model FL-SF-532-10-CW.
Higher power, more wavelengths, customizable solutions
