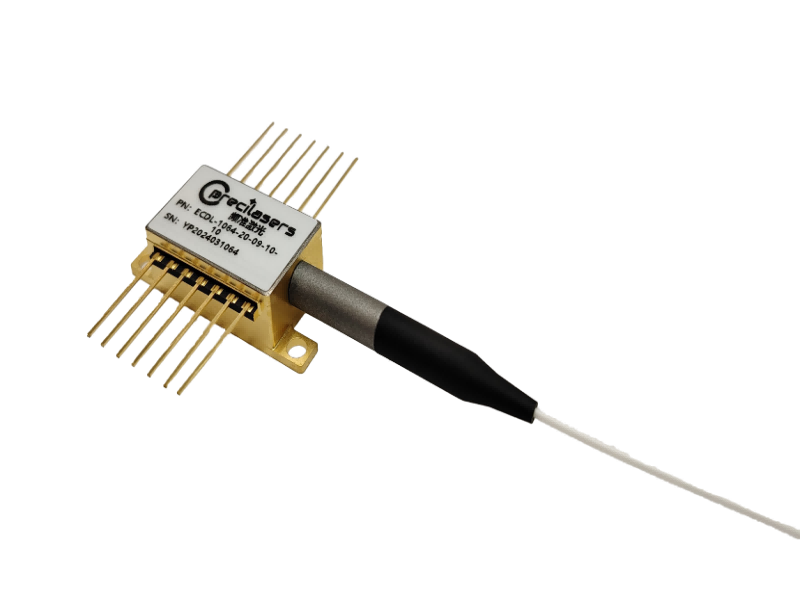

780nm Fixed Externally Cavity Diode Laser (fiber output)
Precilasers is a 780nm diode laser, which emits continuous laser with narrow line width and linear polarization.
Features
- Narrow Linewidth
- Linear Polarization
- Continuous Laser
Application
- Optical Precision Measurement
Main parameters
|
Specification |
|
|
Partnumber |
FECL-SF-X-BF(1) |
|
Center Wavelength |
780.23nm |
|
Threshold Current |
120mA |
|
Maximum Current |
250mA |
|
Working Current |
250mA |
|
Output Power |
mW |
|
Temperature Frequency Tuning Range |
17.5GHz |
|
Linewidth（2）(100us integration ) |
75kHz |
|
Thermistor |
10kΩ |
|
I-TEC Limits |
1500mA |
(1) X is the center wavelength, for 780nm laser, the partnumber is FECL-SF-780-BF
(2) Fiber delay self-heterodyne beat frequency method measurement
Higher power, more wavelengths, customizable solutions
