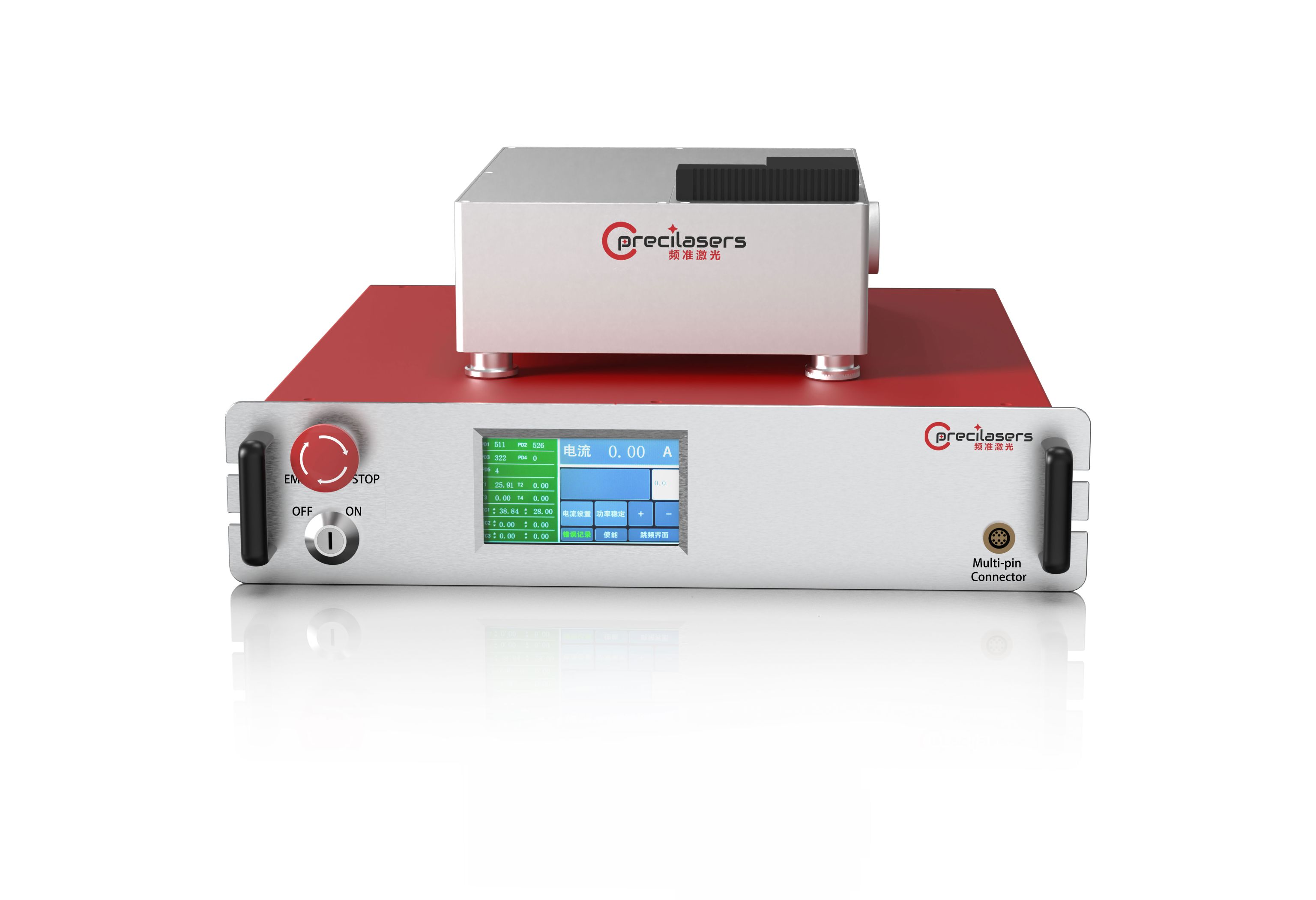

1013nm Narrow linewidth laser
Based on Ytterbium-doped fiber amplifier technique, Precilasers can provide 1013nm high power and low noise amplifier.
Features
- Low Intensity Noise
- Low Phase Noise
- Good Beam Quality
Application
- Rb atom Rydberg
Main parameters
|
Specification |
||
|
Partnumber |
FA-SF-1013-Y-CW(1) |
|
|
Range |
1012.5nm-1022.5nm |
1012.00nm-1014.00nm |
|
Output Power |
>0.1W/2W/10W/20W |
>40W/80W/100W |
|
Relative Intensity Noise |
<0.05% (RMS, 10Hz-10MHz integration) |
|
|
Power Stability |
<0.75% @3hours, RMS |
|
|
Power Tuning Range |
1-100% |
|
|
Output Mode（2） |
Single Mode PM Fiber with FC/APCconnector（Output Power≤2W) 0.6±0.2mm(Output Power≤30W) 1.7±0.2mm(Output Power>30W) |
|
|
Beam Quality |
TEM00，M²<1.1 |
|
|
Polarization |
Linear, >23dB |
|
|
Seed Laser Input Power |
≥10mW(3) |
|
|
Seed Laser Input Isolation |
>25dB |
|
|
Output Laser Isolation |
>25dB |
|
|
Cooling |
Air Cooling(Output Power≤20W)/Water Cooling（All Output Power） |
|
|
Operating Environment & Power Supply |
||
|
Temperature |
15-30 ℃（Air Cooling） OR 15-35 ℃（Water Cooling） |
|
|
Power Supply |
100V-240V, AC, 50/60Hz |
|
|
Communication |
RS422 |
|
(1) Y is the output power，for 1013nm，100W amplifier，the partnumber is FA-SF-1013-100-CW.
(2) Beam size for collimated outout，If PM fiber FC/APC connector output，there is no extra collimator
(3) Default input power should be 10-50mW, for higher or lower input power, please email us for customization
Higher power, more wavelengths, customizable solutions
